RUSHFPV Tank III 5.8G 48CH Adjustable FPV VTX 2-8S

Ultimate 5.8G FPV Video Transmitter for Racing Drones

The RUSHFPV RUSH Tank III Ultimate VTX delivers high-performance 5.8GHz video transmission, essential for competitive FPV racing. Featuring four adjustable power levels (PIT/25/200/500/800mW) and support for 48 channels (or 37CH for US version), this VTX is engineered to allow up to 8 pilots to race simultaneously on the same band without signal interference.

Advanced Stability and Control

This VTX incorporates the TBS SmartAudio protocol, allowing for seamless configuration and status monitoring directly through your OSD menu. Setup is intuitive, utilizing RGB LEDs controlled by conventional double buttons. Furthermore, the LOCK-ON feature eliminates frequency drift, ensuring constant power output across the entire frequency band for a fair and consistent signal for every pilot.

Built Tough for FPV Action

Constructed with a full metal casing, the Tank III offers exceptional heat dissipation and robust protection against crashes and impacts. The internal design features 6 layers of PCB with waterproofing, enhancing durability. Its compact size (36*36*4.5 mm) and 30.5*30.5mm mounting pattern allow for easy integration into standard electronic stacks.

Key Features for Peak Performance

• Adjustable Power Output: PIT, 25mW, 200mW, 500mW, and 800mW.
• Impregnable Power Filtering: Stable operation regardless of power system fluctuations.
• Power LUT: Built-in calibration ensures unique, accurate power output per channel.
• Pit Mode: Reduces power to a minimum for safe ground checks without disturbing others.
• Silent Setting: No interference signals generated during VTX switching or setup.
• Input Voltage Range: Supports 2S to 8S batteries (7-36V DC).

Specifications Overview

• Model Number: RUSH Tank III (Note: Specifications list references RUSH Tank II VTX)
• Dimensions: 36*36*4.5 mm
• Weight: 6.8g (including cable)
• Material: Metal Casing
• Recommended Age: 14+ years

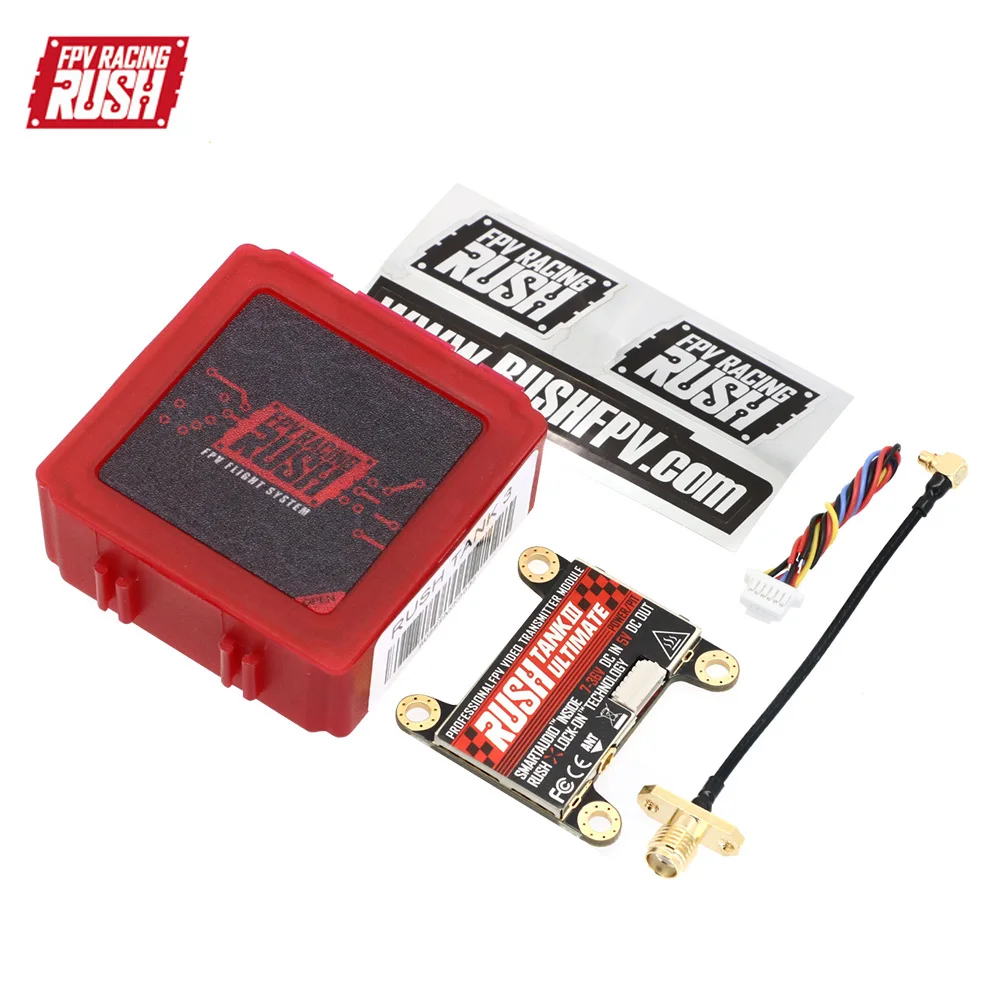

Package Includes

• 1 x RUSH TANK III VTX
• 1 x MMCX to SMA Cable
• 1 x 6 Pin Harness
